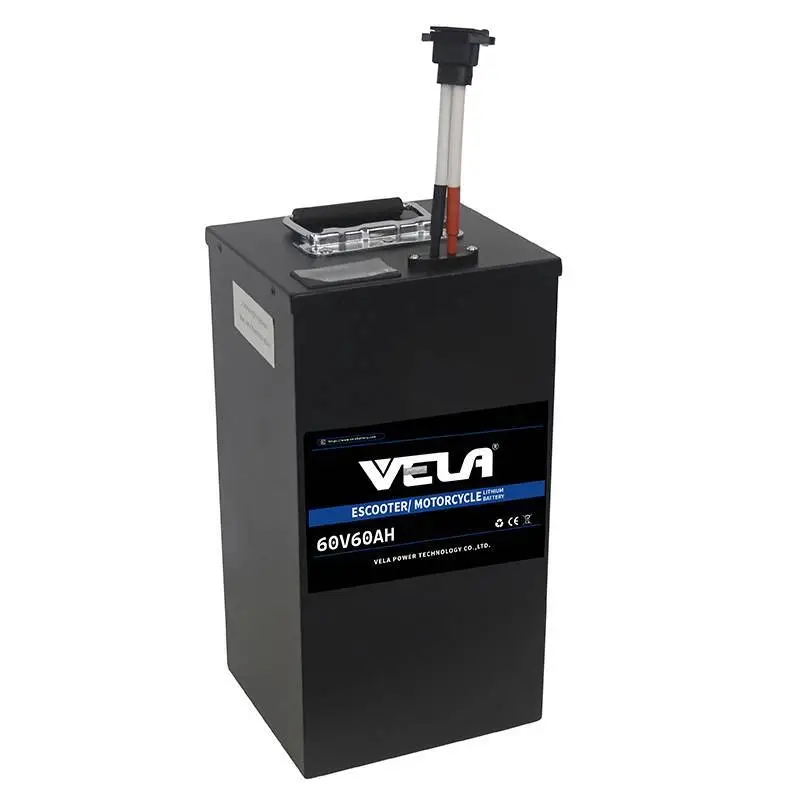

Escooter/ Motorcycle Lithium Battery 60V 60Ah Lithium Battery
ELECTRICAL SPECIFICATIONS | |
|---|---|
| Nominal Voltage | 61.2V |
| Nominal Capacity | 60Ah |
| Energy | 3672Wh |
| Series and Parallel Connection | 17S1P |
| Resistance | ≤40 mΩ |
| Cycle Life | ≥800 cycles @80%DOD |
| Motor Power Range | 500-3000W |
| Driving Distance | 170-190Km |
MECHANICAL SPECIFICATIONS | |
|---|---|
| Dimensions (L x W x H) | 360*180*160mm or 220*190*345mm |
| Weight | Approx.22KG |
| Chemistry | NCM |
| Cell Type | Prismatic |
| Case Material | Metal |
CHARGE & DISCHARGE SPECIFICATIONS | |
|---|---|
| Standard Charge Current | ≤12A |
| Max Charge Current | ≤30A |
| Continuous discharge current | ≤ 90A |
| Pulse discharge current | ≤180A |
| Over-discharge protection cut-off voltage | 46.7V |
| Over-charge protection cut-off voltage | 71.4V |
TEMPERATURE SPECIFICATIONS | |
|---|---|
| Discharge Temperature | -4 to 140 ºF (-20 to 60 ºC) |
| Charge Temperature | 32 to 113 ºF (0 to 45 ºC) |
| Storage Temperature | 77±3 ºF (25±3ºC) |
COMPLIANCE SPECIFICATIONS | |
|---|---|
| Certifications for cell | CE |
| RoHs | |
| UN38.3 | |
Features of 60V motorcycle battery:
1. Lighter weight, smaller size.
2. Can be customized. Install easily.
3. Extremely safe, no explosion, no fire under collision.
4. Strong over-discharge resistance and charge retention.
5. Strong charging acceptance and quick-charging capability.
6. Maintenance-free and no acid or water for maintenance in usage.
7. Large capability and long life for all high power output applications.
8. Environmentally friendly non-toxic, non-contaminating, no rare metal.
9. Low self-discharge and good discharge performance at low temperature.
10. Optional Bluetooth function, APP can monitor the battery voltage, capacity status.
