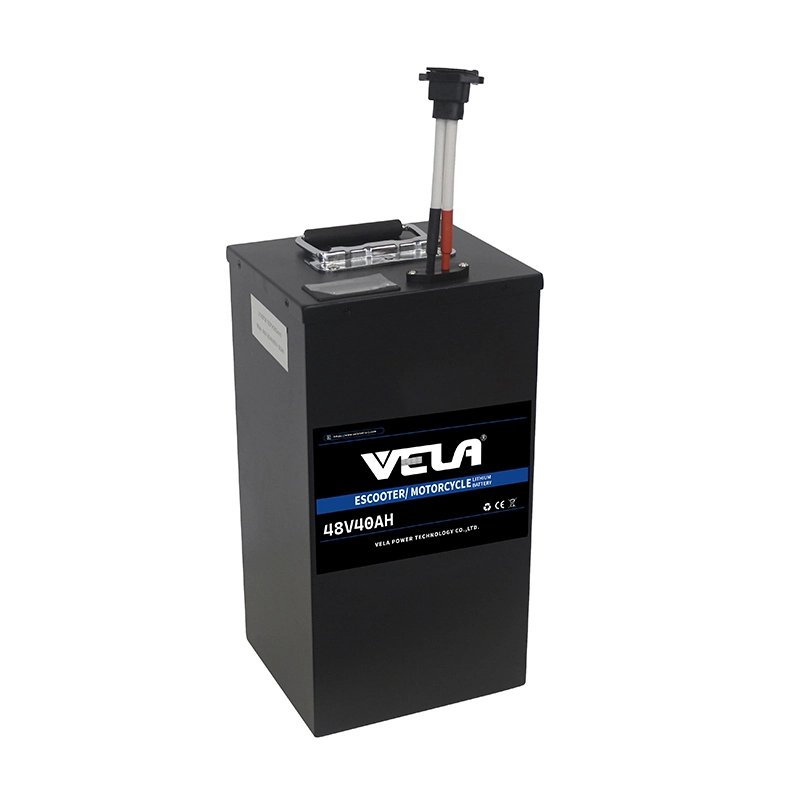

Moped Scooter/ Motorcycle Battery 48V 40Ah Lithium Battery Pack
ELECTRICAL SPECIFICATIONS | |
|---|---|
| Nominal Voltage | 48V |
| Nominal Capacity | 40Ah |
| Energy | 1920Wh |
| Series and Parallel Connection | 13S1P |
| Resistance | ≤40 mΩ |
| Cycle Life | ≥1000 cycles @80%DOD |
| Charge/discharge port | 3 Pin |
| LCD Screen | Included |
MECHANICAL SPECIFICATIONS | |
|---|---|
| Dimensions (L x W x H) | 150*160*260mm(5.9*6.3*10.3 inch) |
| Weight | Approx.9KG |
| Chemistry | NCM |
| Cell Type | Prismatic Cell |
| Case Material | Metal |
CHARGE & DISCHARGE SPECIFICATIONS | |
|---|---|
| Standard Charge Current | ≤5A |
| Max Charge Current | ≤20A |
| Continuous discharge current | ≤ 40A |
| Pulse discharge current | ≤80A |
| Over-discharge protection cut-off voltage | 39V |
| Over-charge protection cut-off voltage | 54.6V |
TEMPERATURE SPECIFICATIONS | |
|---|---|
| Discharge Temperature | -4 to 140 ºF (-20 to 60 ºC) |
| Charge Temperature | 32 to 113 ºF (0 to 45 ºC) |
| Storage Temperature | 77±3 ºF (25±3ºC) |
COMPLIANCE SPECIFICATIONS | |
|---|---|
| Certifications | CE |
| MSDS | |
| UN38.3 | |
Features of 48 volt battery for electric scooter :
1. Lighter weight, smaller size.
2. 48V motorcycle lithium battery can be customized. Install easily.
3. High capacity lithium ion battery, extremely.safe, no explosion, no fire under collision.
4. Strong over-discharge resistance and charge retention.
5. Strong charging acceptance and quick-charging capability.
6. Maintenance-free and no acid or water for maintenance in usage.
7. Environmentally friendly non-toxic, non-contaminating, no rare metal.
8. Large capability and long life for all high power output applications.
9. Low self-discharge and good discharge performance at low temperature.
10.Optional Bluetooth function, APP can monitor the battery voltage, capacity status.
