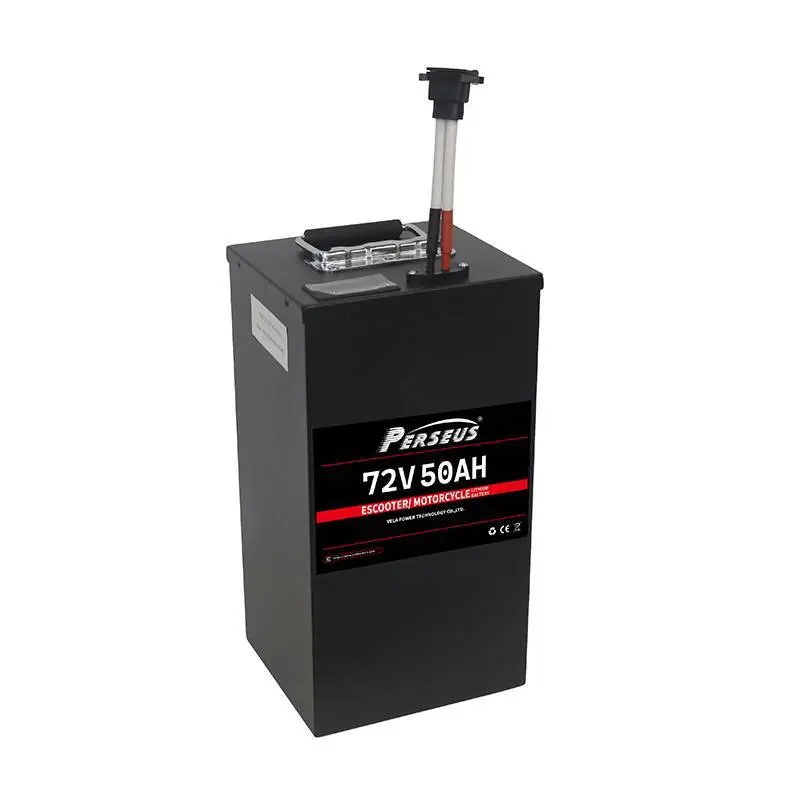

Escooter/ Motorcycle Battery 72V 50Ah Lithium Battery Pack

Place of Origin:

China

Brand Name:

VELA&PERSEUS &OEM

Minimum Order Quantity:

100 PCS

Price:

Negotiate

Packing Details:

cartons& pallets or depend on customers

Delivery time:

about 30-35 dyas

Supply Ability:

1000000 per month

ELECTRICAL SPECIFICATIONS
Nominal Voltage	72V
Nominal Capacity	50Ah
Energy	3600Wh
Series and Parallel Connection	20S1P
Resistance	≤40 mΩ
Cycle Life	≥800 cycles @80%DOD
Motor Power Range	500-3500W
Power Screen	LCD

CHARGE & DISCHARGE SPECIFICATIONS
Standard Charge Current	≤8A
Max Charge Current	≤25A
Continuous discharge current	≤ 40A
Pulse discharge current	≤120A
Over-discharge protection cut-off voltage	60V
Over-charge protection cut-off voltage	84V

TEMPERATURE SPECIFICATIONS
Discharge Temperature	-4 to 140 ºF (-20 to 60 ºC)
Charge Temperature	32 to 113 ºF (0 to 45 ºC)
Storage Temperature	77±3 ºF (25±3ºC)

Features of 72V battery:

1. Lighter weight, smaller size.

2. 72V ebike battery can be customized, install easily.

3. Extremely safe, no explosion, no fire under collision.

4. Strong over-discharge resistance and charge retention.

5. Strong charging acceptance and quick-charging capability.

6. Maintenance-free and no acid or water for maintenance in usage.

7. Large capability and long life for all high power output applications.

8. Environmentally friendly non-toxic, non-contaminating, no rare metal.

9. 72V lithium ion battery pack with low self-discharge and good discharge performance at low temperature.

10. Optional Bluetooth function, APP can monitor the lithium-ion motorcycle battery voltage, capacity status
