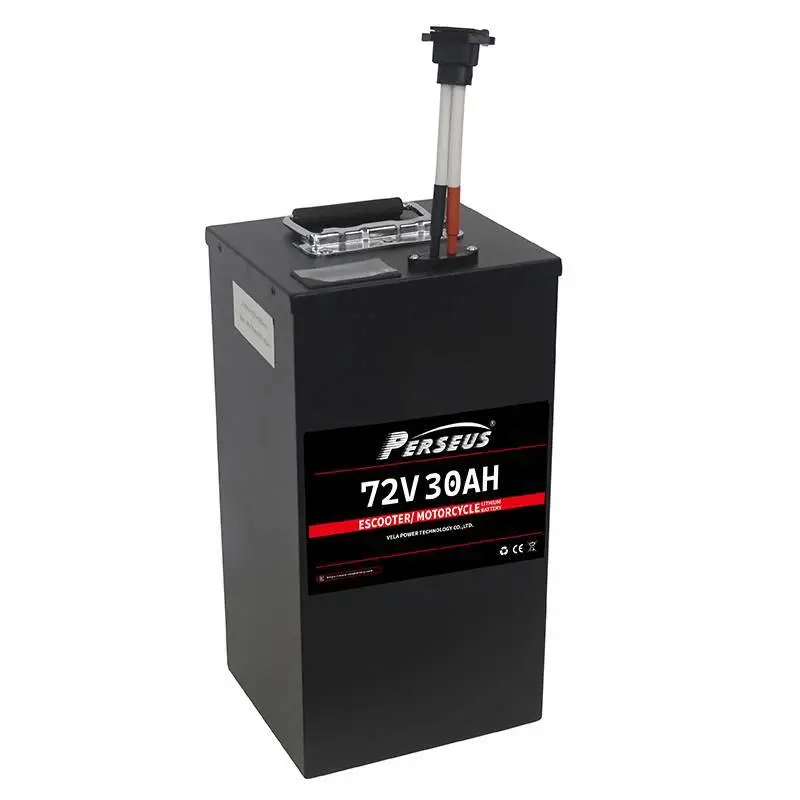

Escooter/ Motorcycle Battery 72V 30Ah Lithium Battery
ELECTRICAL SPECIFICATIONS | |
|---|---|
| Nominal Voltage | 72V |
| Nominal Capacity | 30Ah |
| Energy | 2160Wh |
| Series and Parallel Connection | 20S1P |
| Resistance | ≤40 mΩ |
| Cycle Life | Cycle Life |
| Motor Power Range | 500W-2000W |
| Driving Distance | 80Km |
MECHANICAL SPECIFICATIONS | |
|---|---|
| Dimensions (L x W x H) | 220*180*260mm |
| Weight | Approx.15.6KG |
| Chemistry | NCM |
| Cell Type | Prismatic |
| Case Material | Metal |
CHARGE & DISCHARGE SPECIFICATIONS | |
|---|---|
| Standard Charge Current | ≤6A |
| Max Charge Current | ≤15A |
| Continuous discharge current | ≤ 40A |
| Pulse discharge current | ≤80A |
| Over-discharge protection cut-off voltage | 56V |
| Over-charge protection cut-off voltage | 84V |
TEMPERATURE SPECIFICATIONS | |
|---|---|
| Discharge Temperature | -4 to 140 ºF (-20 to 60 ºC) |
| Charge Temperature | 32 to 113 ºF (0 to 45 ºC) |
| Storage Temperature | 77±3 ºF (25±3ºC) |
COMPLIANCE SPECIFICATIONS | |
|---|---|
| Certifications | CE |
| RoHs | |
| UN38.3 | |
High Quality Motorcycle Lithium Battery
Features of 72V 30Ah lithium motorcycle battery:
1. Lighter weight, smaller size.
2. Can be customized, install easily.
3. Extremely safe, no explosion, no fire under collision.
4. Strong over-discharge resistance and charge retention.
5. Strong charging acceptance and quick-charging capability.
6. Maintenance-free and no acid or water for maintenance in usage.
7. Large capability and long life for all high power output applications.
8. Environmentally friendly non-toxic, non-contaminating, no rare metal.
9. Low self-discharge and good discharge performance at low temperature.
10. Optional Bluetooth function, APP can monitor the lithium-ion motorcycle battery voltage, capacity status
