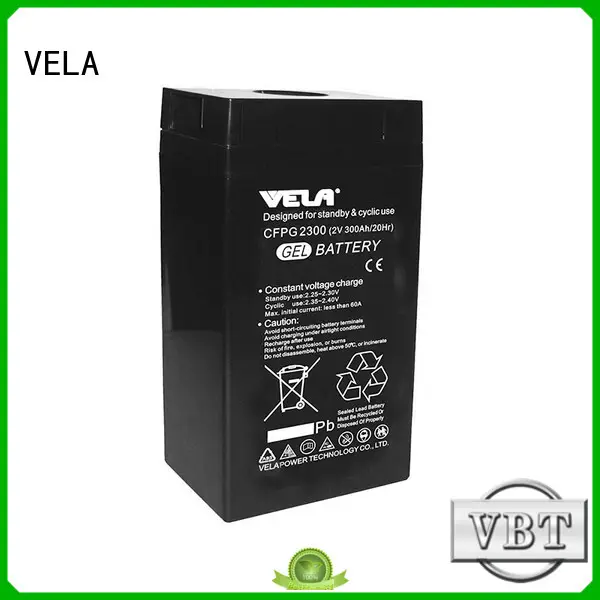

VELA professional industry batteries satisfying for UPS system
Place of Origin:
China
Brand Name:
VELA &PERSEUS
Price:
Negotiate
Packing Details:
cartons &pallet,or depend on customer
Delivery time:
about 30 days
Payment terms:
L/C,T/T
Application Scope
vehicle battery has a wide range of applications.VELA Industrial Battery is committed to producing quality motorcycle batteries and providing comprehensive and reasonable solutions for customers.
1. Advanced technology and latest machine & equipment are used to ensure VELA flooded battery is manufactured based on the requirements of lean production.
2. For its high level of flooded battery , it can efficiently prolong the lifespan of industry batteries .
3. Compared with other flooded battery , industry batteries brings features of deep cycle battery .
4. It has received more and better comments from customers.
product description
Gel batteries use gel electrolytes, reducing the risk of spillage and evaporation due to corrosion. Due to the gelled solution can hold their charge for a longer time, so the gel battery have a longer service life than the traditional battery. And it can withstand extreme ranges in temperature. Nowadays it widely used in water pumping, solar system, UPS system, golf cars etc.
Features
Best suited for Deep cycle applications
Maintenance free
vibration-resistant
Lowest cost-per-month
Lowest cost-per-cycle
Good low temperature performance
Good recovery in deep discharge characteristics
Completely leak-proof and splash-proof, easy to install in almost any position
Maintenance free
vibration-resistant
Lowest cost-per-month
Lowest cost-per-cycle
Good low temperature performance
Good recovery in deep discharge characteristics
Completely leak-proof and splash-proof, easy to install in almost any position
Application
UPS system
Solar and wind systems
Marine Equipment
Medical Equipment
Military Equipment
Emergency lighting
Commercial deep cycle applications
Power plant
Telecommunications
Golf cars
Wheelchair
Water pumping
Solar and wind systems
Marine Equipment
Medical Equipment
Military Equipment
Emergency lighting
Commercial deep cycle applications
Power plant
Telecommunications
Golf cars
Wheelchair
Water pumping
General Technical Specifications
| Model | Nominal Voltage (V) | Capacity (AH) | Internal Resistance (mOhm) | Dimensions（mm/in） | Terminal | Weight ±4%(Kg) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Total Height | ||||||||||||
| mm | in | mm | in | mm | in | mm | in | Type | Position | Kg | Lbs | ||||
| FPG12180 | 12 | 18 | 16 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T8 | C | 5 | 11.02 |
| FPG12240 | 12 | 24 | 20 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | T8 | C | 7.4 | 16.31 |
| FPG12280 | 12 | 28 | 15 | 8 | 17.64 | ||||||||||
| FPG12280A | 12 | 28 | 14 | 165 | 6.5 | 125 | 4.92 | 175 | 6.89 | 175 | 6.89 | T8 | C | 9 | 19.84 |
| LFPG6100 | 6 | 100 | 3.3 | 194 | 7.6 | 170 | 6.7 | 205 | 8.1 | 205 | 8.1 | T9 | A | 15.8 | 34.83 |
| LFPG6190 | 6 | 190 | 2.2 | 243 | 9.6 | 187 | 7.4 | 253 | 10 | 276 | 10.9 | T11 | A | 31 | 68.34 |
| LFPG1233 | 12 | 33 | 11 | 195 | 7.7 | 130 | 5.1 | 155 | 8.9 | 155 | 8.9 | T9 | C | 10.2 | 22.49 |
| LFPG1240 | 12 | 40 | 9.5 | 197 | 7.8 | 165 | 6.5 | 170 | 6.7 | 170 | 6.7 | T9 | D | 12.5 | 27.56 |
| LFPG1255 | 12 | 55 | 7 | 229 | 9 | 138 | 5.4 | 208 | 8.2 | 208 | 8.2 | T9 | C | 17 | 37.48 |
| LFPG1265 | 12 | 65 | 6.6 | 350 | 3.8 | 167 | 6.6 | 179 | 7 | 179 | 7 | T9 | C | 21 | 46.30 |
| LFPG1260 | 12 | 60 | 7.7 | 22 | 48.50 | ||||||||||
| LFPG1270 | 12 | 70 | 7 | 260 | 10.2 | 168 | 6.6 | 211 | 8.3 | 211 | 8.3 | T9 | C | 24 | 52.91 |
| LFPG1280 | 12 | 80 | 6.5 | 306 | 12.05 | 169 | 6.65 | 211 | 8.3 | 211 | 8.3 | T9 | C | 27.5 | 60.63 |
| LFPG1290 | 12 | 90 | 5.8 | 306 | 12.05 | 169 | 6.65 | 211 | 8.3 | 211 | 8.3 | T9 | C | 28.5 | 62.83 |
| LFPG1290H | 12 | 90 | 5.4 | 330 | 13 | 171 | 6.7 | 214 | 8.4 | 214 | 8.4 | T9 | C | 31 | 68.34 |
| LFPG12100 | 12 | 100 | 5 | 330 | 13 | 171 | 6.7 | 214 | 8.4 | 214 | 8.4 | T9 | C | 32 | 70.55 |
| LFPG12110 | 12 | 110 | 5.2 | 330 | 13 | 171 | 6.7 | 225 | 8.86 | 225 | 8.86 | T9 | C | 33.5 | 73.85 |
| LFPG12120 | 12 | 120 | 4.4 | 409 | 16.1 | 176 | 6.9 | 225 | 8.9 | 225 | 8.9 | T11 | C | 36.5 | 80.47 |
| LFPG12140 | 12 | 134 | 4.2 | 342 | 13.5 | 172 | 6.8 | 280 | 11 | 280 | 11 | T11 | C | 42.5 | 93.70 |
| LFPG12150 | 12 | 150 | 3.9 | 485 | 19.1 | 172 | 6.8 | 240 | 9.4 | 240 | 9.4 | T11 | C | 44 | 97.00 |
| LFPG12180 | 12 | 180 | 3.6 | 494 | 19.4 | 206 | 8.1 | 209 | 8.2 | 209 | 8.2 | T11 | C | 55 | 121.25 |
| LFPG12160 | 12 | 160 | 3.2 | 530 | 20.8 | 207 | 8.15 | 214 | 8.43 | 214 | 8.43 | T11 | C | 53 | 116.84 |
| LFPG12200 | 12 | 200 | 3.3 | 522 | 20.6 | 238 | 9.4 | 218 | 8.6 | 218 | 8.6 | T11 | C | 66 | 145.51 |
| LFPG12250 | 12 | 250 | 2.9 | 521 | 20.5 | 269 | 10.6 | 220 | 8.7 | 220 | 8.7 | T11 | E | 75 | 165.35 |
| LFPG1250FT | 12 | 50 | 7.2 | 277 | 10.91 | 106 | 4.17 | 221 | 8.7 | 221 | 8.7 | T9 | E | 17 | 37.48 |
| LFPG12100FT | 12 | 100 | 5.4 | 506 | 19.9 | 110 | 4.3 | 224 | 8.8 | 239 | 9.4 | T9 | E | 31 | 68.34 |
| LFPG12150FT | 12 | 150 | 4 | 551 | 21.7 | 110 | 4.3 | 287 | 11.3 | 287 | 11.3 | T11 | E | 47 | 103.62 |
| LFPG12180FT | 12 | 180 | 3 | 546 | 21.5 | 125 | 4.9 | 317 | 12.5 | 323 | 12.7 | T11 | E | 57 | 125.66 |
| CFPG2100 | 2 | 100 | 0.9 | 171 | 6.7 | 72 | 2.8 | 206 | 8.1 | 209 | 8.2 | T10 | A | 6 | 13.23 |
| CFPG2150 | 2 | 150 | 0.7 | 171 | 6.7 | 102 | 4 | 206 | 8.1 | 211 | 8.3 | T10 | A | 8.5 | 18.74 |
| CFPG2200 | 2 | 200 | 0.95 | 173 | 6.8 | 109 | 4.3 | 330 | 8.3 | 364 | 14.3 | T10 | G | 14 | 30.86 |
| CFPG2300 | 2 | 300 | 0.8 | 171 | 6.7 | 151 | 5.9 | 330 | 8.3 | 364 | 14.3 | T10 | G | 19.5 | 42.99 |
| CFPG2400 | 2 | 400 | 0.65 | 210 | 8.3 | 176 | 6.9 | 330 | 8.3 | 367 | 14.4 | T10 | H | 26.5 | 58.42 |
| CFPG2500 | 2 | 500 | 0.55 | 241 | 9.5 | 171 | 6.7 | 330 | 8.3 | 365 | 14.4 | T10 | H | 31.5 | 69.45 |
| CFPG2600 | 2 | 600 | 0.5 | 302 | 11.9 | 175 | 6.9 | 330 | 8.3 | 367 | 14.4 | T10 | H | 38 | 83.78 |
| CFPG2800 | 2 | 800 | 0.4 | 410 | 16.1 | 175 | 6.9 | 330 | 8.3 | 367 | 14.4 | T10 | I | 53.5 | 117.95 |
| CFPG21000 | 2 | 1000 | 0.3 | 475 | 18.7 | 175 | 6.9 | 330 | 8.3 | 367 | 14.4 | T10 | I | 64 | 141.10 |
| CFPG21500 | 2 | 1500 | 0.22 | 400 | 15.7 | 350 | 13.8 | 345 | 13.6 | 382 | 15 | T10 | J | 97 | 213.85 |
| CFPG22000 | 2 | 2000 | 0.2 | 490 | 19.3 | 350 | 13.8 | 345 | 13.6 | 382 | 15 | T10 | K | 130 | 286.60 |
| CFPG23000 | 2 | 3000 | 0.13 | 710 | 28 | 350 | 13.8 | 345 | 13.6 | 382 | 15 | T10 | K | 198 | 436.52 |
| CFPG2200S | 2 | 200 | 0.9 | 206 | 8.1 | 103 | 4.1 | 355 | 14 | 390 | 15.4 | T10 | G | 15.5 | 34.17 |
| CFPG2250S | 2 | 250 | 0.8 | 206 | 8.1 | 124 | 4.9 | 355 | 14 | 390 | 15.4 | T10 | G | 19 | 41.89 |
| CFPG2300S | 2 | 300 | 0.75 | 206 | 8.1 | 145 | 5.7 | 355 | 14 | 390 | 15.4 | T10 | G | 21 | 46.30 |
| CFPG2350S | 2 | 350 | 0.7 | 206 | 8.1 | 124 | 4.9 | 471 | 18.5 | 506 | 19.9 | T10 | G | 24 | 52.91 |
| CFPG2400S | 2 | 400 | 0.6 | 206 | 8.1 | 145 | 5.7 | 471 | 18.5 | 506 | 19.9 | T10 | G | 27.5 | 60.63 |
| CFPG2500S | 2 | 500 | 0.5 | 206 | 8.1 | 166 | 6.5 | 471 | 18.5 | 506 | 19.9 | T10 | G | 32 | 70.55 |
| CFPG2600S | 2 | 600 | 0.45 | 206 | 8.1 | 145 | 5.7 | 646 | 25.4 | 681 | 26.8 | T10 | G | 43 | 94.80 |
| CFPG2800S | 2 | 800 | 0.4 | 210 | 8.3 | 191 | 7.5 | 646 | 25.4 | 681 | 26.8 | T10 | H | 60 | 132.28 |
| CFPG21000S | 2 | 1000 | 0.33 | 233 | 9.2 | 210 | 8.3 | 646 | 25.4 | 681 | 26.8 | T10 | H | 71 | 156.53 |
| CFPG21200S | 2 | 1200 | 0.28 | 275 | 10.8 | 210 | 8.3 | 646 | 25.4 | 681 | 26.8 | T10 | H | 87 | 191.80 |
| CFPG21500S | 2 | 1500 | 0.22 | 275 | 10.8 | 210 | 8.3 | 796 | 31.3 | 831 | 26.8 | T10 | H | 105 | 231.49 |
| CFPG22000S | 2 | 2000 | 0.2 | 399 | 15.7 | 210 | 8.3 | 772 | 30.4 | 807 | 31.8 | T10 | I | 150 | 330.69 |
| CFPG22500S | 2 | 2500 | 0.17 | 487 | 19.2 | 212 | 8.3 | 772 | 30.4 | 807 | 31.8 | T10 | I | 187 | 412.26 |
| CFPG23000S | 2 | 3000 | 0.13 | 576 | 22.7 | 212 | 8.3 | 772 | 30.4 | 807 | 31.8 | T10 | I | 223 | 491.63 |
Company Features
1. VELA Power Technology Co., Ltd. is one of the most successful manufacturers of industry batteries in the premium segment.
2. With a sound quality control system, the quality of golf cart batteries is 100% guaranteed.
3. VELA Power Technology Co., Ltd. will fully focus on creating a innovative and scientific and techno-logic type company. Ask! VELA Power Technology Co., Ltd. is highly responsible for every detail of industrial battery to seek higher quality. Ask!
