Powering the Future with VELA Battery - Professional industrial battery manufacturer

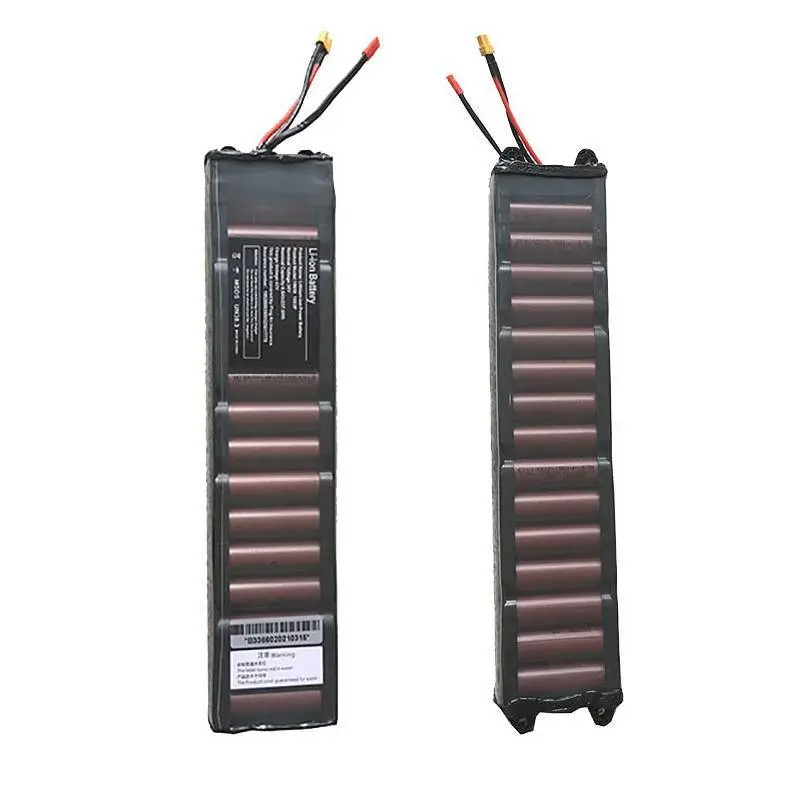

Electric Scooter Standard 36V 6Ah Lithium Battery
ELECTRICAL SPECIFICATIONS | |
|---|---|
| Nominal Voltage | 36V |
| Nominal Capacity | 6Ah |
| Energy | 216Wh |
| Series and Parallel Connection | 10S3P |
| Resistance | ≤300 mΩ |
| Efficiency | ≥99% |
| Cycle Life | ≥800 cycles @80%DOD |
| Self Discharge | <3% per Month |
MECHANICAL SPECIFICATIONS | |
|---|---|
| Dimensions (L x W x H) | 320*74*45mm |
| Weight | Approx.1.65KG |
| Chemistry | NCM |
| Cell Type | 18650 |
| Case Material | Plastic |
CHARGE & DISCHARGE SPECIFICATIONS | |
|---|---|
| Standard Charge Current | ≤1.5A |
| Max Charge Current | ≤2A |
| Continuous discharge current | ≤ 3A |
| Pulse discharge current | ≤12A |
| Over-discharge protection cut-off voltage | 28V |
| Over-charge protection cut-off voltage | 42V |
TEMPERATURE SPECIFICATIONS | |
|---|---|
| Discharge Temperature | -4 to 140 ºF (-20 to 60 ºC) |
| Charge Temperature | 32 to 113 ºF (0 to 45 ºC) |
| Storage Temperature | 77±3 ºF (25±3ºC) |
COMPLIANCE SPECIFICATIONS | |
|---|---|
| Certification | CE |
| RoHs | |
UN38.3 | |
Scooter Lithium Battery Feature
36 volt lithium ion scooter battery has below features:
1. Light, good design, standard dimension and model can be used in most electric scooters on the market, such as M365 electric scooter, citycoco electric scooter, foldable electric scooter, etc.
2. High quality cells applied. Adopt top A quality cell,100% sorting before assemble, which can guarantee scooter battery pack long cycle life.
3. BMS included, monitor the e-scooter battery status and ensure safety performance.
4. Strong bracket.Battery are assembled with high strength bracket, which can protect the battery cells and ensure the battery stable performance.
5.In the same dimension and shape, more 36V battery model provided for your choice:
36V 6Ah electric scooter lithium battery, 36V 7.8Ah electric scooter lithium battery,
36V 10.5Ah electric scooter lithium battery, etc.
6. Support optional Can Communication function
7. Many factory and wholesale old customers purchase from us again and again. Price is very competitive due to our large production quantity.
8. More e-scooter lithium battery can be customized for voltage, capacity, dimension, interface, etc.
