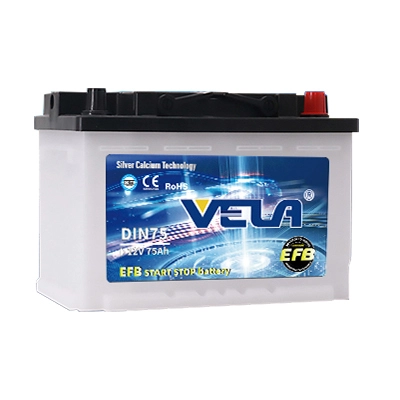

EFB Start-stop Battery

Name: EFB Start-stop Battery
Brand: VELA Battery

Place of Origin:

CHINA

Brand Name:

VELA&PERSEUS &OEM

Model Number:

DIN72L/DIN75L/DIN92L

Minimum Order Quantity:

100 PCS

Price:

Negotiate

Packing Details:

cartons& pallets or depend on customers

Delivery time:

about 30 dyas

Payment terms:

L/C, T/T

Supply Ability:

1000000 per month

Model	Capacity	CCA	Lay out	Terminal	L	W	H
Model	20HR(Ah)	At -18℃	Lay out	Terminal	L	W	H
DIN70L	72	580	0	A	279	174	190
DIN75L	75	600	0	A	279	174	190
DIN92L	92	750	0	A	353	175	190

characteristic

• High cranking performance (CCA – Cold Cranking Amps) to suit modern engine starting needs
• Latest lead acid technology to meet the demands of modern market conditions
• Designed and constructed to achieve Heavy Duty outputs in testing market environments
• Maintenance free construction with easy vent plug access for checking electrolyte levels – ensures maximum battery performance and life
• Carry handles to allow for ease of transport
• Can be used for cranking, igniting and lighting
• Low self discharge rate
• Longer life
• Environmentally friendly

product details

Pure lead terminal

Indicator display battery's state of charge

Portable handle

product description

part.1

Maintenance

The indicator on cell cover can display the battery’s state of charge. When it displays “Green”, the battery can work normally. When it displays “White”, the battery should charge in time. When it displays “Red”, the battery should be replaced at once.

part.2

Recharging

After long periods of storage (6 months or more) the battery will need to be recharged when the terminal voltage falls below 12.5 V. When recharging, please keep yourself and your colleagues safe by following all the relevant safety recommendations (such as wearing protective glasses).

part.3

Checking the terminal voltage

The terminal voltage should be checked six months after the date of manufacture. And if the voltage has dropped below 12.5 V, the battery needs to be recharged to between 12.7 and 12.8 V before being stored further.

part.4

Recharging recommendations

If the terminal voltage drops below 12.5 V, the battery must be recharged. The recommended charge current equates to one tenth of the battery’s nominal capacity (e.g. 8 A for a battery with a nominal capacity of 80 Ah). How long the battery needs to be recharged obviously depends on how it’s going to be used afterwards.

part.5

STORAGE

1 This type of battery is a liquid lead-acid battery and should be stored in a dry, clean, well-ventilated place at a temperature of 5-25°C. Avoid direct sunlight and at least 2 meters from the heat source.
2 The battery must not be placed upside down or tipped over. And must avoid any mechanical impact and heavy pressure.
