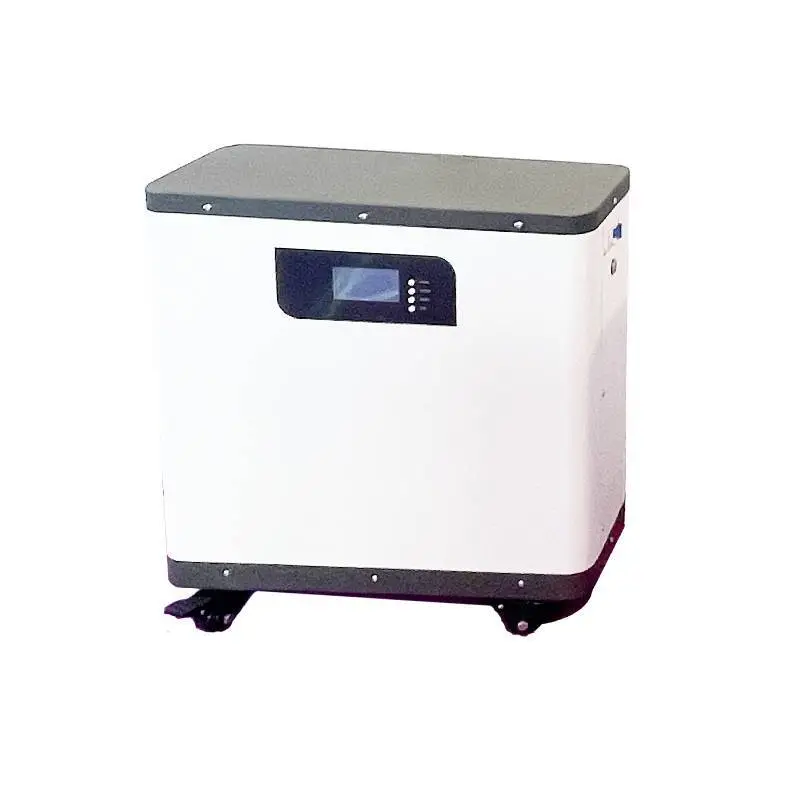

5120WH 1
5120WH 1

5120WH

    oops...!

    no product data.

    Go to homepage

    PRODUCT FEATURES

    液晶显示 LCD DisplayY

    电池种类

    Type

    LiFePO4

    排列方法

    Pack Method

    16S1P

    单体电芯额定容量

    Cell NominalCapacity

    100AH

    标称电压

    Nominal voltage

    51.2V

    充电方式

    Charge method

    CC/CV

    充电截止电压

    Charge cut-off voltage

    58.4V

    放电截止电压

    Discharge cut-off voltage

    44.8

    标准充电电流

    Standard charge current

    20A

    最大充电电流

    Max. charge current

    100A(Max)

    标准放电电流

    Standard discharge current

    50A

    最大持续放电电流

    Max.continues discharge

    100A

    循环寿命

    Cycle Life

    >6000 cycles

    外形尺寸

    Dimension

    500*490*185 mm

    重量

    Weight

    46 Kg

    通信方式

    Communication

    CAN,RS485,RS232,WiFi, Bluetooth [Selectable]

    工作温度

    Working temperature

    Charge:0°C~55°C

    Discharge:-20°C~60°C

    存储温度

    Storage Temperature

    -10°C~50°C


    保护 Protection:

    Over Charge Protection, Over discharge protection, Over current Protection,

    Short circuit Protection., Over Temperature Protection.
