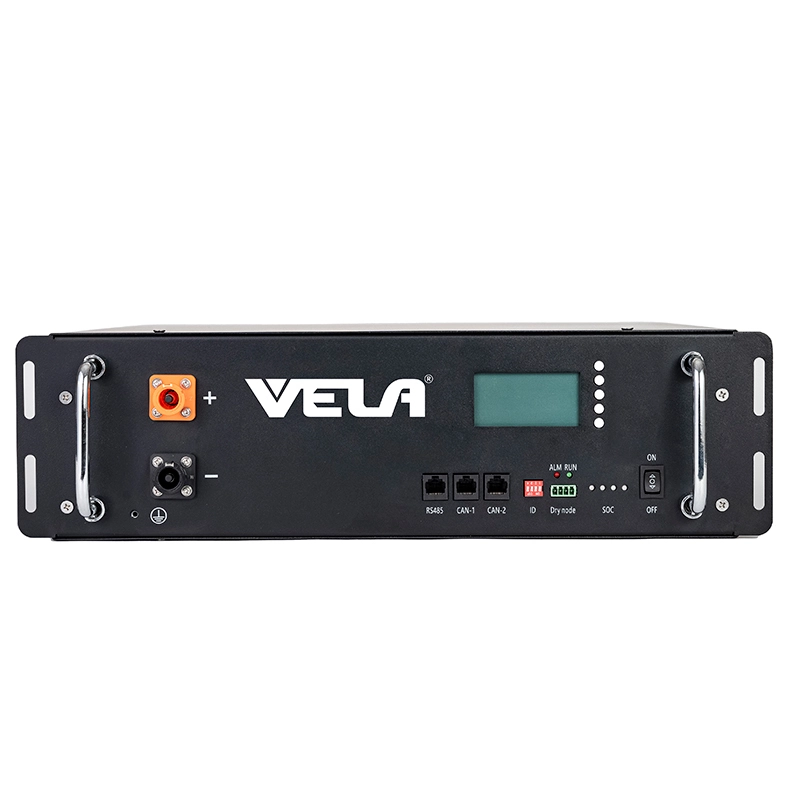

VBT-EVV-B48100-Standard cabinet type storage battery box

Place of Origin:

China

Brand Name:

VELA&PERSEUS &OEM

Minimum Order Quantity:

100 PCS

Price:

Negotiate

Packing Details:

cartons& pallets or depend on customers

Delivery time:

about 30-35 dyas

Supply Ability:

1000000 per month

BASIC PARAMETERS
Product model: Type of electric core:	VBT-EVV- BP200V16 Yiwei LFP square electric core
Core specification:	3.2V 100Ah
Number of battery modules:	Support multiple battery boxes in parallel at most
Rated capacity:	100Ah
Rated total energy:	5.12kWh
Rated voltage:	51.2V (48V optional)

Structural parameters
Weight:40kg	5000w
Size (WH D):482x130x480mm	230Vac (200/208/220/240Vac can be set) 士 5%
Protection grade: IP54	50Hz 士 0.3Hz/60Hz士 0.3 Hz
Cooling mode: natural cooling	input>95%, output>90%
Ambient temperature:
Charging:	0 °C~55 °C
Discharge:	-20 °C~60 °C
Storage:	-10°C~45 °C
Operating humidity:	5~95%o, relative humidity
Communication mode:	CAN, RS485,RS232
Alarm and protection:	with
Indicator status:	alarm/operation/soc
Installation mode:	rack mounted

Peculiarity

1.High safety and long life: lithium iron phosphate battery cell with high consistency,

safety and reliability is selected;

2.Flexible capacity expansion on demand: support 10 parallel connections for capacity

expansion to meet power demand of different specifications;

3.The product has the functions of over charging,over discharging, over current, short

circuit, over temperature and data reading;

4.Communication supports CAN, RS485, RS232;

5.Power indicator/LCD display function;

6.Low power consumption, with data history exception record query;
