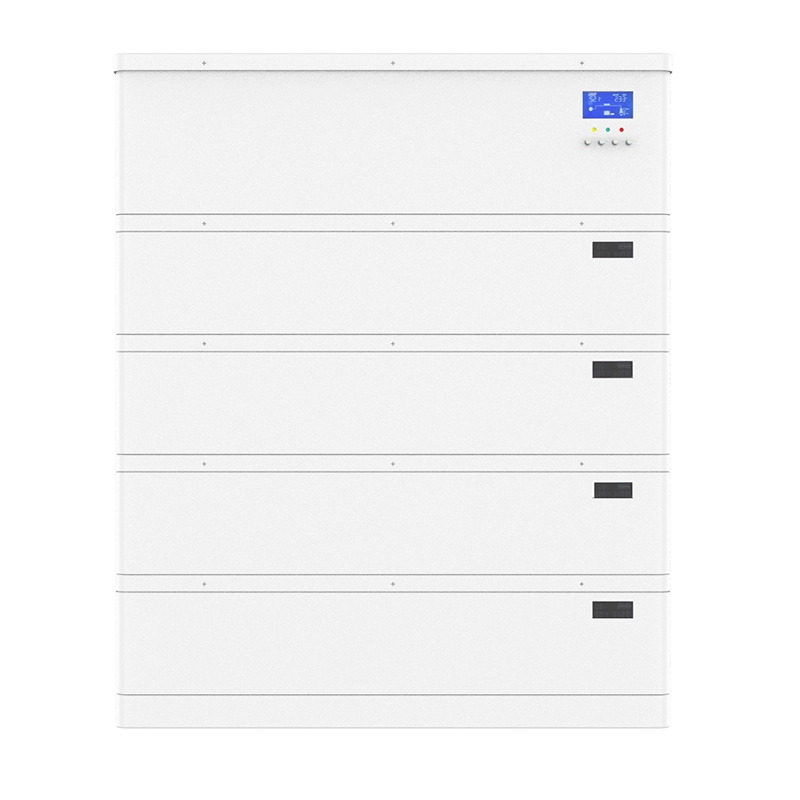

VBT-EVV-BP100V16-03-Modular floor storage

Place of Origin:

China

Brand Name:

VELA&PERSEUS &OEM

Minimum Order Quantity:

100 PCS

Price:

Negotiate

Packing Details:

cartons& pallets or depend on customers

Delivery time:

about 30-35 dyas

Supply Ability:

1000000 per month

BASIC PARAMETERS
VBT-EVV-BP100V16 / VBT-EVV-BP100V16 Type of electric core:	Yiwei LFP square electric core-3.2V100Ah
Rated capacity:	100Ah 100Ah
Rated total energy:	5.12-40.96kwh / 5.12-40.96kWh
Rated voltage:	51.2V (single box)
Voltage range:	43.2~58.4V / 345.6-467.2V (Maximum 8 groups in series)

PV power generation parameters
Maximum output power:	5000w
MPPT voltage range:	120~450V
Solar charging current:	0~80A settable

System parameter
Weight (single battery box/control box):	40Kg/15Kg40Kg/12Kg
Single battery box size (H W D):	675375160mm 675375160mm
Single control box size (H * W * D):	675375190mm675375140mm
Protection grade:	IP54
Cooling mode: natural cooling	Cooling mode: natural cooling
Operating environment:
Charging:	0 °C~55 C
Discharge:	-20°C~60 °C
Storage:	-10°C~45°C/
Installation type:	stacked
Communication mode:	CAN, RS485, RS232

Peculiarity

1.High safety and long life: lithium iron phosphate battery cell with high consis-

tency, safety and reliability is selected;

2.It has the way of mains bypass, inverter output, photovoltaic power generation,

etc., and has the function of uninterrupt-ed power supply;

3.Communication supports CAN, RS485,RS232;

4.Modular design, supporting the use of 1~8 battery boxes in series and parallel;

5.It has complete short circuit protection, overvoltage and undervoltage protection,

overload protection, reverse irrigation protection and other protection func-tions;

6.It can match global mainstream inverters, such as Victron, Voltronic, SMA, Aiswei,

Student, Goodwe, Growtt, etc;
