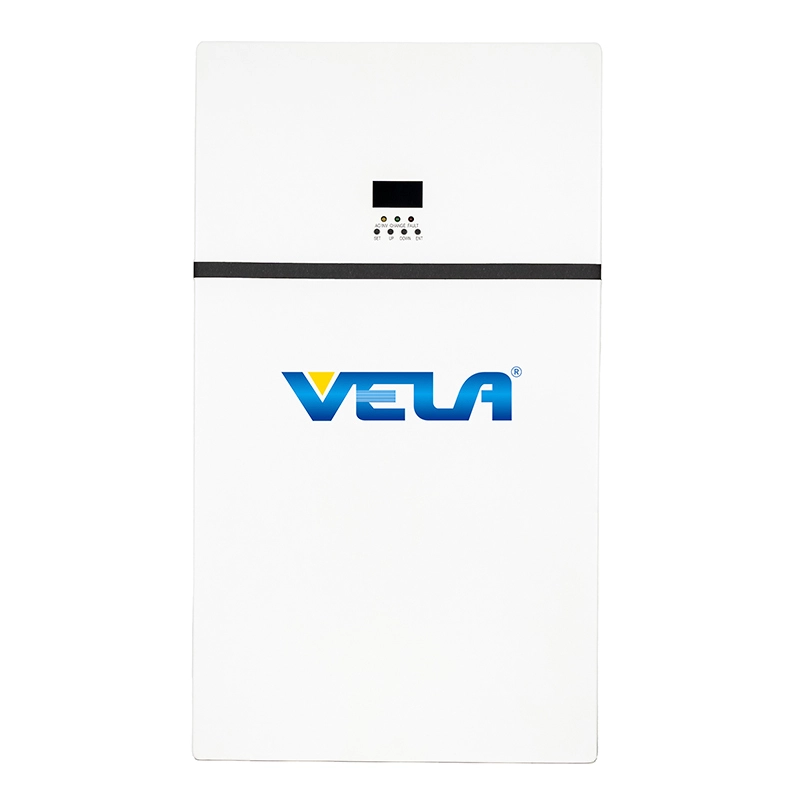

VBT-EVV-BP100&200V16-Household light storage machine
BASIC PARAMETERS |
|
|---|---|
|
VBT-EVV-BP100V16-F / VBT-EVV-BP200V16-F Type of electric core: |
Yiwei LFP square electric core-3.2V100Ah |
|
Rated capacity: |
100Ah 200Ah |
|
Rated total energy: |
5.12kWh 10.24kWh |
|
Rated voltage: |
51.2V |
|
Voltage range: |
43.2~58.4V |
|
AC SIDE PARAMETERS |
|
|---|---|
|
Rated output power: |
5000w |
|
Rated output voltage: |
230Vac (200/208/220/240Vac can be set) 士 5% |
|
Output frequency range: |
50Hz 士 0.3Hz/60Hz士 0.3 Hz |
|
Efficiency: |
input>95%, output>90% |
|
PV power generation parameters |
|
|---|---|
|
Maximum output power: |
5000w |
|
MPPT voltage range: |
120~450V |
|
Solar charging current: |
0~80A settable |
System parameter |
|
|---|---|
|
Weight: |
45Kg 80Kg |
|
Dimensions (H *W*D): |
850*480*160mm / 1100*480*180mm |
|
Protection grade: |
IP54 |
|
Cooling mode: |
forced air cooling |
|
Operating environment: |
|
|
Charging: |
0 °C~55 °C |
|
Discharge: |
-20°C~60 °C |
|
Storage: |
-10°C~45°C |
|
Operating humidity: |
5~95%o, relative humidity |
|
Installation type: |
wall mounted |
|
Communication mode: |
CAN, RS485, RS232 |
MORE ADVANTAGES
1.Low cost and high performance
-Special battery cell for energy storage,with a life of over6000
cycles, low power cost, good safety performance, and support for customization
2.Matching with global mainstream inverter
-Sermatec, Growatt, Deye, McGrinen,Goodwe,SMA,Sored,
Victron, LUXpower, Jingshi, Shuori, etc
3.Simple maintenance
-Modular design, flexible configuration, fast connection,
plug and play Quick plug anti easy connection
Peculiarity
1.High safety and long life:lithium iron phosphate battery cell with high consis-
tency, safety and reliability is selected;
2.It has the way of mains bypass, inverter output, photovoltaic power generation,etc., and has the function of uninterrupt-ed power supply;
3.There are four charging modes available:
solar energy only, mains power priority,solar energy priority and hybrid charging.
4.Communication supports CAN, RS485,RS232;
5.The integrated design of battery and inverter module makes the product beau-tiful, green, non-toxic and pollution-free;
6.It has complete short circuit protection,overvoltage and undervoltage protection, overload protection, reverse irrigation protection and other protection functions
